E系列-C2605
发布日期：2024-01-09 浏览次数：692

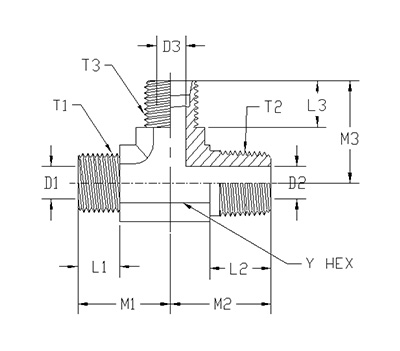

| ITEM | P/N | Y | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
| 1 | C2605-04-04-04-FG | 0.562 | 9/16-18 UNF | 0.85 | 0.172 | 1/4-18NPTF | 1.12 | 0.281 | 9/16-18 UNF | 0.85 | 0.172 |
| 2 | C2605-06-04-06-FG | 0.75 | 11/16-16UN | 0.98 | 0.264 | 1/4-18NPTF | 1.09 | 0.264 | 11/16-16UN | 0.98 | 0.264 |
| 3 | C2605-06-06-06-FG | 0.75 | 11/16-16UN | 0.98 | 0.264 | 3/8-18NPTF | 1.22 | 0.264 | 11/16-16UN | 0.98 | 0.264 |
| 4 | C2605-08-08-08-FG | 0.875 | 13/16-16UN | 1.1 | 0.378 | 1/2-14NPTF | 1.47 | 0.378 | 13/16-16UN | 1.1 | 0.378 |
