J系列-2702

发布日期:2024-01-12 浏览次数:313

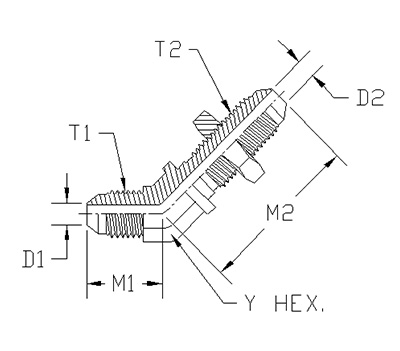

ITEM P/N Y HEX T1 M1 D1 T2 M2 D2
1 2702-03-03-FG 0.438 3/8-24UNF 0.69 0.125 3/8-24UNF 1.42 0.125
2 2702-04-04-FG 0.438 7/16-20UNF 0.72 0.172 7/16-20UNF 1.53 0.172
3 2702-05-05-FG 0.562 1/2-20UNF 0.77 0.234 1/2-20UNF 1.66 0.234
4 2702-06-06-FG 0.562 9/16-18UNF 0.83 0.297 9/16-18UNF 1.67 0.297
5 2702-08-06-FG 0.75 3/4-16UNF 0.98 0.391 9/16-18UNF 1.83 0.297
6 2702-08-08-FG 0.75 3/4-16UNF 0.98 0.391 3/4-16UNF 1.94 0.391
7 2702-10-10-FG 0.875 7/8-14UN 1.11 0.484 7/8-14UN 2.17 0.484
8 2702-12-12-FG 1.062 1-1/16-12UN 1.28 0.609 1-1/16-12UN 2.44 0.609
9 2702-16-16-FG 1.312 1-5/16-12UN 1.47 0.844 1-5/16-12UN 2.56 0.844
10 2702-20-20-FG 1.625 1-5/8-12UN 1.59 1.078 1-5/8-12UN 2.65 1.078
11 2702-24-24-FG 1.875 1-7/8-12UN 1.78 1.312 1-7/8-12UN 2.67 1.312
