J系列-2651
发布日期：2024-01-12 浏览次数：823

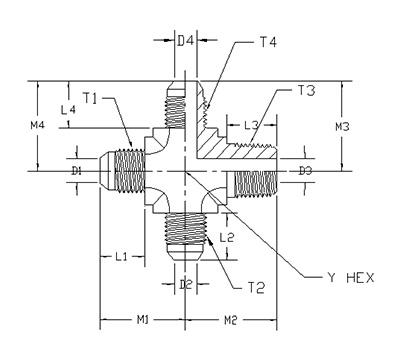

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
| 1 | 2651-03-02-03-FG | 0.438 | 3/8-24UNF | 0.83 | 0.125 | 1/8-27NPTF | 0.72 | 0.125 | 3/8-24UNF | 0.83 | 0.125 |
| 2 | 2651-04-02-04-FG | 0.438 | 7/16-20UNF | 0.89 | 0.172 | 1/8-27NPTF | 0.78 | 0.172 | 7/16-20UNF | 0.89 | 0.172 |
| 2651-04-04-02-FG | 0.562 | 7/16-20 UNF | 1.05 | 0.172 | 1/4-18 NPTF | 1.09 | 0.172 | 5/16-24 UNF | 0.77 | 0.062 | |
| 3 | 2651-04-04-04-FG | 0.562 | 7/16-20UNF | 1.05 | 0.172 | 1/4-18NPTF | 1.09 | 0.172 | 7/16-20UNF | 1.05 | 0.172 |
| 4 | 2651-05-02-05-FG | 0.562 | 1/2-20UNF | 0.95 | 0.188 | 1/8-27NPTF | 0.78 | 0.188 | 1/2-20UNF | 0.95 | 0.188 |
| 5 | 2651-05-04-05-FG | 0.562 | 1/2-20UNF | 1.05 | 0.234 | 1/4-18NPTF | 1.09 | 0.234 | 1/2-20UNF | 1.05 | 0.234 |
| 6 | 2651-06-02-06-FG | 0.562 | 9/16-18UNF | 1.06 | 0.297 | 1/8-27NPTF | 0.90 | 0.188 | 9/16-18UNF | 1.06 | 0.297 |
| 7 | 2651-06-04-04-FG | 0.562 | 9/16-18UNF | 1.06 | 0.297 | 1/4-18NPTF | 1.09 | 0.297 | 7/16-20UNF | 1.05 | 0.172 |
| 8 | 2651-06-04-06-FG | 0.562 | 9/16-18UNF | 1.06 | 0.297 | 1/4-18NPTF | 1.09 | 0.297 | 9/16-18UNF | 1.06 | 0.297 |
| 9 | 2651-06-06-06-FG | 0.75 | 9/16-18UNF | 1.14 | 0.297 | 3/8-18NPTF | 1.22 | 0.297 | 9/16-18UNF | 1.14 | 0.297 |
| 10 | 2651-06-08-06-FG | 0.875 | 9/16-18UNF | 1.22 | 0.297 | 1/2-14NPTF | 1.47 | 0.531 | 9/16-18UNF | 1.22 | 0.297 |
| 11 | 2651-08-04-08-FG | 0.75 | 3/4-16UNF | 1.25 | 0.391 | 1/4-18NPTF | 1.22 | 0.281 | 3/4-16UNF | 1.25 | 0.391 |
| 12 | 2651-08-06-08-FG | 0.75 | 3/4-16UNF | 1.25 | 0.391 | 3/8-18NPTF | 1.22 | 0.391 | 3/4-16UNF | 1.25 | 0.391 |
| 13 | 2651-08-08-08-FG | 0.875 | 3/4-16UNF | 1.33 | 0.391 | 1/2-14NPTF | 1.47 | 0.391 | 3/4-16UNF | 1.33 | 0.391 |
| 14 | 2651-10-08-10-FG | 0.875 | 7/8-14UN | 1.45 | 0.484 | 1/2-14NPTF | 1.47 | 0.484 | 7/8-14UN | 1.45 | 0.484 |
| 15 | 2651-12-12-08-FG | 1.062 | 1-1/16-12UN | 1.66 | 0.609 | 3/4-14NPTF | 1.59 | 0.609 | 3/4-16UNF | 1.42 | 0.391 |
| 16 | 2651-12-12-12-FG | 1.062 | 1-1/16-12UN | 1.66 | 0.609 | 3/4-14NPTF | 1.59 | 0.609 | 1-1/16-12UN | 1.66 | 0.609 |
| 17 | 2651-14-12-12-FG | 1.312 | 1-3/16-12UN | 1.8 | 0.719 | 3/4-14NPTF | 1.69 | 0.719 | 1-1/16-12UN | 1.77 | 0.609 |
| 18 | 2651-14-12-14-FG | 1.312 | 1-3/16-12UN | 1.8 | 0.719 | 3/4-14NPTF | 1.69 | 0.719 | 1-3/16-12UN | 1.8 | 0.719 |
| 19 | 2651-16-16-16-FG | 1.312 | 1-5/16-12UN | 1.81 | 0.844 | 1-11-1/2NPTF | 1.97 | 0.844 | 1-5/16-12UN | 1.81 | 0.844 |
| 20 | 2651-20-20-20-FG | 1.625 | 1-5/8-12UN | 2.06 | 1.078 | 1-1/4-11-1/2NPTF | 2.38 | 1.078 | 1-5/8-12UN | 2.06 | 1.078 |
| 21 | 2651-24-24-24-FG | 1.875 | 1-7/8-12UN | 2.33 | 1.312 | 1-1/2-11-1/2NPTF | 2.64 | 1.312 | 1-7/8-12UN | 2.33 | 1.312 |
| 22 | 2651-32-32-32-FG | 2.5 | 2-1/2-12UN | 3.06 | 1.781 | 2-11-1/2 NPTF | 3 | 1.781 | 2-1/2-12UN | 3.06 | 1.781 |
