J系列-2501-LLL
发布日期：2024-01-12 浏览次数：689

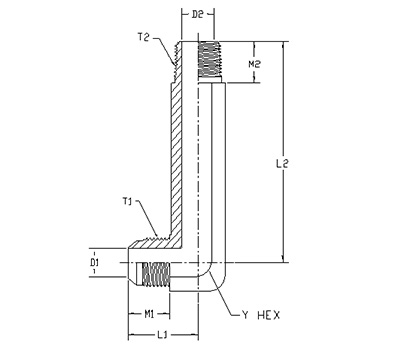

| ITEM | P/N | Y HEX | T1 | T2 | T1 | T2 | M1 | M2 | D1 | D2 |
| 1 | 2501-LLL-02-02-FG | 0.438 | 5/16-24UNF | 1/8-27NPTF | 0.77 | 0.72 | 0.062 | 0.188 | ||
| 2 | 2501-LLL-03-02-FG | 0.438 | 3/8-24UNF | 1/8-27NPTF | 0.83 | 0.72 | 0.125 | 0.188 | ||
| 3 | 2501-LLL-04-02-FG | 0.438 | 7/16-20UNF | 1/8-27NPTF | 0.89 | 0.78 | 0.172 | 0.188 | ||
| 4 | 2501-LLL-04-04-FG | 0.562 | 7/16-20UNF | 1/4-18NPTF | 1.05 | 1.09 | 0.172 | 0.281 | ||
| 5 | 2501-LLL-04-06-FG | 0.75 | 7/16-20UNF | 3/8-18NPTF | 1.12 | 1.22 | 0.172 | 0.406 | ||
| 6 | 2501-LLL-04-08-FG | 0.875 | 7/16-20UNF | 1/2-14NPTF | 1.21 | 1.47 | 0.172 | 0.531 | ||
| 7 | 2501-LLL-05-02-FG | 0.562 | 1/2-20UNF | 1/8-27NPTF | 0.95 | 0.78 | 0.234 | 0.188 | ||
| 8 | 2501-LLL-05-04-FG | 0.562 | 1/2-20UNF | 1/4-18NPTF | 1.05 | 1.09 | 0.234 | 0.281 | ||
| 9 | 2501-LLL-05-06-FG | 0.75 | 1/2-20UNF | 3/8-18NPTF | 1.12 | 1.22 | 0.234 | 0.406 | ||
| 10 | 2501-LLL-05-08-FG | 0.875 | 1/2-20UNF | 1/2-14NPTF | 1.21 | 1.47 | 0.234 | 0.531 | ||
| 11 | 2501-LLL-06-02-FG | 0.562 | 9/16-18UNF | 1/8-27NPTF | 1.06 | 0.9 | 0.297 | 0.188 | ||
| 12 | 2501-LLL-06-04-FG | 0.562 | 9/16-18UNF | 1/4-18NPTF | 1.06 | 1.09 | 0.297 | 0.281 | ||
| 13 | 2501-LLL-06-06-FG | 0.75 | 9/16-18UNF | 3/8-18NPTF | 1.14 | 1.22 | 0.297 | 0.406 | ||
| 14 | 2501-LLL-06-08-FG | 0.875 | 9/16-18UNF | 1/2-14NPTF | 1.22 | 1.47 | 0.297 | 0.531 | ||
| 15 | 2501-LLL-06-12-FG | 1.062 | 9/16-18UNF | 3/4-14NPTF | 1.31 | 1.59 | 0.297 | 0.719 | ||
| 16 | 2501-LLL-08-02-FG | 0.75 | 3/4-16UNF | 1/8-27NPTF | 1.25 | 1.03 | 0.391 | 0.188 | ||
| 17 | 2501-LLL-08-04-FG | 0.75 | 3/4-16UNF | 1/4-18NPTF | 1.25 | 1.22 | 0.391 | 0.281 | ||
| 18 | 2501-LLL-08-06-FG | 0.75 | 3/4-16UNF | 3/8-18NPTF | 1.25 | 1.22 | 0.391 | 0.406 | ||
| 19 | 2501-LLL-08-08-FG | 0.875 | 3/4-16UNF | 1/2-14NPTF | 1.33 | 1.47 | 0.391 | 0.531 | ||
| 20 | 2501-LLL-08-12-FG | 1.062 | 3/4-16UNF | 3/4-14NPTF | 1.42 | 1.59 | 0.391 | 0.719 | ||
| 21 | 2501-LLL-08-16-FG | 1.312 | 3/4-16UNF | 1-11-1/2NPTF | 1.52 | 1.97 | 0.391 | 0.938 | ||
| 22 | 2501-LLL-10-06-FG | 0.875 | 7/8-14UN | 3/8-18NPTF | 1.45 | 1.28 | 0.484 | 0.406 | ||
| 23 | 2501-LLL-10-08-FG | 0.875 | 7/8-14UN | 1/2-14NPTF | 1.45 | 1.47 | 0.484 | 0.531 | ||
| 24 | 2501-LLL-10-12-FG | 1.062 | 7/8-14UN | 3/4-14NPTF | 1.54 | 1.59 | 0.484 | 0.719 | ||
| 25 | 2501-LLL-10-16-FG | 1.312 | 7/8-14UN | 1-11-1/2NPTF | 1.64 | 1.97 | 0.484 | 0.938 | ||
| 26 | 2501-LLL-12-06-FG | 1.062 | 1-1/16-12UN | 3/8-18NPTF | 1.66 | 1.4 | 0.609 | 0.406 | ||
| 27 | 2501-LLL-12-08-FG | 1.062 | 1-1/16-12UN | 1/2-14NPTF | 1.66 | 1.59 | 0.609 | 0.531 | ||
| 28 | 2501-LLL-12-12-FG | 1.062 | 1-1/16-12UN | 3/4-14NPTF | 1.66 | 1.59 | 0.609 | 0.719 | ||
| 29 | 2501-LLL-12-16-FG | 1.312 | 1-1/16-12UN | 1-11-1/2 NPTF | 1.76 | 1.97 | 0.609 | 0.938 | ||
| 30 | 2501-LLL-14-12-FG | 1.312 | 1-3/16-12UN | 3/4-14NPTF | 1.8 | 1.69 | 0.719 | 0.719 | ||
| 31 | 2501-LLL-16-08-FG | 1.312 | 1-5/16-12UN | 1/2-14NPTF | 1.81 | 1.78 | 0.844 | 0.531 | ||
| 32 | 2501-LLL-16-12-FG | 1.312 | 1-5/16-12UN | 3/4-14NPTF | 1.81 | 1.78 | 0.844 | 0.719 | ||
| 33 | 2501-LLL-16-16-FG | 1.312 | 1-5/16-12UN | 1-11-1/2 NPTF | 1.81 | 1.97 | 0.844 | 0.938 | ||
| 34 | 2501-LLL-16-20-FG | 1.625 | 1-5/16-12UN | 1-1/4-11-1/2NPTF | 2.01 | 2.38 | 0.844 | 1.25 | ||
| 35 | 2501-LLL-16-24-FG | 1.875 | 1-5/16-12UN | 1-1/2-11-12NPTF | 2.16 | 2.64 | 0.844 | 1.5 | ||
| 36 | 2501-LLL-20-16-FG | 1.625 | 1-5/8-12UN | 1-11-1/2NPTF | 2.06 | 2.35 | 1.078 | 0.938 | ||
| 37 | 2501-LLL-20-20-FG | 1.625 | 1-5/8-12UN | 1-1/4-11-1/2NPTF | 2.06 | 2.38 | 1.078 | 1.250 | ||
| 38 | 2501-LLL-20-24-FG | 1.875 | 1-5/8-12UN | 1-1/2-11-12NPTF | 2.2 | 2.64 | 1.078 | 1.5 | ||
| 39 | 2501-LLL-24-16-FG | 1.875 | 1-7/8-12UN | 1-11-1/2NPTF | 2.33 | 2.58 | 1.312 | 0.938 | ||
| 40 | 2501-LLL-24-20-FG | 1.875 | 1-7/8-12UN | 1-1/4-11-1/2NPTF | 2.33 | 2.61 | 1.312 | 1.25 | ||
| 41 | 2501-LLL-24-24-FG | 1.875 | 1-7/8-12UN | 1-1/2-11-1/2NPTF | 2.33 | 2.64 | 1.312 | 1.5 | ||
| 42 | 2501-LLL-32-24-FG | 2.5 | 2-1/2-12UN | 1-1/2-11-1/2NPTF | 3.06 | 2.97 | 1.781 | 1.5 | ||
| 43 | 2501-LLL-32-32-FG | 2.5 | 2-1/2-12UN | 2-11-1/2NPTF | 3.06 | 3 | 1.781 | 1.938 |
