E系列-C2606
发布日期：2024-01-09 浏览次数：705

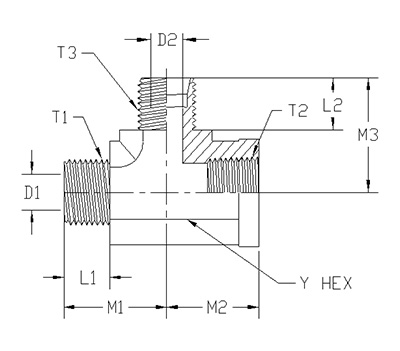

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
| 1 | C2606-02-02-02-FG | 0.438 | 5/16-24UNF | 0.77 | 0.093 | 5/16-24UNF | 0.77 | 0.093 | 5/16-24UNF | 0.77 | 0.093 |
| 2 | C2606-03-03-03-FG | 0.438 | 3/8-24UNF | 0.83 | 0.125 | 3/8-24UNF | 0.83 | 0.125 | 3/8-24UNF | 0.83 | 0.125 |
| 3 | C2606-04-04-04-FG | 0.438 | 7/16-20UNF | 0.89 | 0.203 | 7/16-20UNF | 0.89 | 0.203 | 7/16-20UNF | 0.89 | 0.203 |
| 4 | C2606-05-05-05-FG | 0.562 | 1/2-20UNF | 0.95 | 0.234 | 1/2-20UNF | 0.95 | 0.234 | 1/2-20UNF | 0.95 | 0.234 |
| 5 | C2606-06-06-06-FG | 0.562 | 9/16-18UNF | 1.05 | 0.281 | 9/16-18UNF | 1.05 | 0.281 | 9/16-18UNF | 1.05 | 0.281 |
| 6 | C2606-08-08-06-FG | 0.75 | 3/4-16UNF | 1.25 | 0.422 | 3/4-16UNF | 1.25 | 0.422 | 9/16-18UNF | 1.14 | 0.281 |
| 7 | C2606-08-08-08-FG | 0.75 | 3/4-16UNF | 1.25 | 0.391 | 3/4-16UNF | 1.25 | 0.391 | 3/4-16UNF | 1.25 | 0.391 |
| 8 | C2606-10-10-08-FG | 0.875 | 7/8-14UNF | 1.42 | 0.5 | 7/8-14UNF | 1.42 | 0.5 | 3/4-16UNF | 1.35 | 0.422 |
| 9 | C2606-10-10-10-FG | 0.875 | 7/8-14UNF | 1.42 | 0.500 | 7/8-14UNF | 1.42 | 0.500 | 7/8-14UNF | 1.42 | 0.500 |
| 10 | C2606-12-12-12-FG | 1.062 | 1-1/16-12UNF | 1.58 | 0.656 | 1-1/16-12UNF | 1.58 | 0.656 | 1-1/16-12UNF | 1.58 | 0.656 |
| 11 | C2606-14-14-14-FG | 1.312 | 1-3/16-12UNF | 1.66 | 0.719 | 1-3/16-12UNF | 1.66 | 0.719 | 1-3/16-12UNF | 1.66 | 0.719 |
| 12 | C2606-16-16-16-FG | 1.312 | 1-5/16-12UNF | 1.73 | 0.875 | 1-5/16-12UNF | 1.73 | 0.875 | 1-5/16-12UNF | 1.73 | 0.875 |
| 13 | C2606-32-32-32-FG | 2.5 | 2-1/2-12UN | 2.45 | 1.813 | 2-1/2-12UN | 2.45 | 1.813 | 2-1/2-12UN | 2.45 | 1.813 |
