E系列-C2403

发布日期:2024-01-09 浏览次数:387

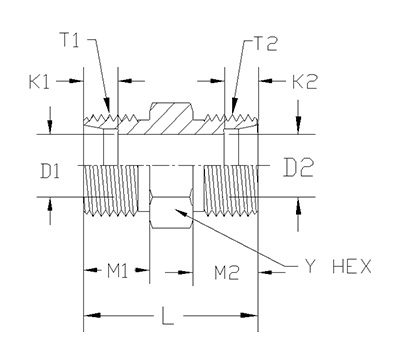

ITEM P/N Y HEX T1 M1 D1 T2
1 C2403-02-02-FG 0.438 5/16-24UNF 1.02 0.093 5/16-24UNF
2 C2403-03-03-FG 0.438 3/8-24UNF 1.11 0.125 3/8-24UNF
3 C2403-04-04-FG 0.5 7/16-20UNF 1.18 0.203 7/16-20UNF
4 C2403-06-04-FG 0.625 9/16-18UNF 1.22 0.203 7/16-20UNF
5 C2403-08-06-FG 0.813 3/4-16UNF 1.33 0.281 9/16-18UNF
6 C2403-08-08-FG 0.813 3/4-16UNF 1.42 0.422 3/4-16UNF
7 C2403-10-10-FG 0.938 7/8-14UNF 1.61 0.5 7/8-14UNF
8 C2403-14-14-FG 1.250 1-3/16-12UN 1.81 0.719 1-3/16-12UN
9 C2403-16-16-FG 1.375 1-5/16-12UNF 1.81 0.875 1-5/16-12UNF
10 C2403-20-20-FG 1.688 1-5/8-12UNF 1.89 0.875 1-5/8-12UNF
11 C2403-24-24-FG 2.000 1-7/8-12UNF 1.96 1.344 1-7/8-12UNF
12 C2403-32-32-FG 2.625 2-1/2-12UNF 2.11 1.813 2-1/2-12UNF
