B系列-60-6013
发布日期：2024-01-09 浏览次数：723

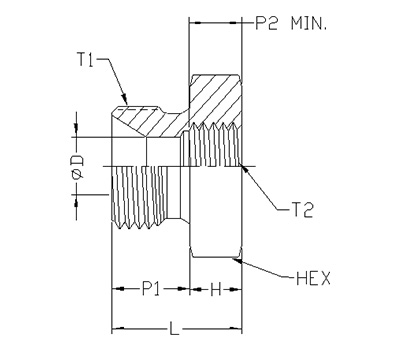

| ITEM | P/N | T1 | T2 | P1 | P2 | L | D | H | HEX |
| 1 | 6013-06-02 | G3/8-19 | G1/8-28 | 12 | 9 | 20 | 7.9 | 8 | 22 |
| 2 | 6013-08-04 | G1/2-14 | G1/4-19 | 14 | 15 | 24 | 11.1 | 10 | 27 |
| 3 | 6013-12-02 | G3/4-14 | G1/8-28 | 16 | 9 | 28 | 14.5 | 12 | 32 |
| 4 | 6013-12-04 | G3/4-14 | G1/4-19 | 16 | 15 | 28 | 14.5 | 12 | 32 |
| 5 | 6013-12-06 | G3/4-14 | G3/8-19 | 16 | 15 | 28 | 14.5 | 12 | 32 |
| 6 | 6013-16-04 | G1-11 | G1/4-19 | 19 | 15 | 31.5 | 20 | 12.5 | 41 |
| 7 | 6013-16-06 | G1-11 | G3/8-19 | 19 | 15 | 31.5 | 20 | 12.5 | 41 |
| 8 | 6013-16-08 | G1-11 | G1/2-14 | 19 | 15 | 31.5 | 20 | 12.5 | 41 |
| 9 | 6013-20-08 | G1 1/4-11 | G1/2-14 | 21 | 16 | 34 | 26 | 13 | 50 |
| 10 | 6013-20-12 | G1 1/4-11 | G3/4-14 | 21 | 20 | 34 | 26 | 13 | 50 |
| 11 | 6013-20-16 | G1 1/4-11 | G1-11 | 21 | 22 | 34 | 26 | 13 | 50 |
| 12 | 6013-24-08 | G1 1/2-11 | G1/2-14 | 22 | - | 37 | 33.3 | 15 | 55 |
| 13 | 6013-24-12 | G1 1/2-11 | G3/4-14 | 22 | - | 37 | 33.3 | 15 | 55 |
| 14 | 6013-24-16 | G1 1/2-11 | G1-11 | 22 | - | 37 | 33.3 | 15 | 55 |
| 15 | 6013-32-16 | G2-11 | G1-11 | 25 | - | 44 | 46 | 15 | 70 |
| 16 | 6013-32-20 | G2-11 | G1 1/4-11 | 25 | - | 44 | 46 | 15 | 70 |
| 17 | 6013-32-24 | G2-11 | G1 1/2-11 | 25 | - | 44 | 46 | 15 | 70 |
