P系列-1502-DETAIL

发布日期:2023-11-21 浏览次数:389

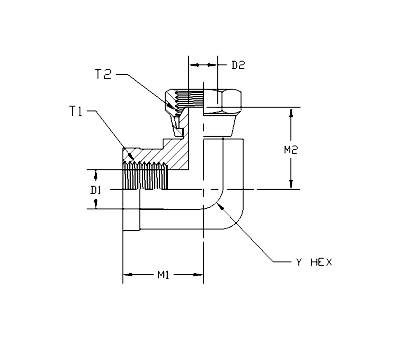

ITEM P/N Y HEX T1 T2 M1 M2 D1 D2
1 1502-02-02-FG 0.562 1/8-27 NPTF 1/8-27 NPSM 0.660  0.800  0.332  0.110
2 1502-04-04-FG 0.75 1/4-18 NPTF 1/4-18 NPSM 0.880  0.990  0.430  0.210
3 1502-06-06-FG 0.875 3/8-18 NPTF 3/8-18 NPSM 1.020  1.060  0.570  0.320
4 1502-08-08-FG 1.062 1/2-14 NPTF 1/2-14 NPSM 1.230  1.240  0.696  0.440
5 1502-12-12-FG 1.312 3/4-14 NPTF 3/4-14 NPSM 1.360  1.470  0.906  0.610
6 1502-16-16-FG 1.625 1-11-1/2 NPTF 1-11-1/2 NPSM 1.620  1.730  1.141  0.780
7 1502-20-20-FG 1.875 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPSM 1.700  1.830  1.484  1.010
8 1502-24-24-FG 2.5 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPSM 2.080  2.410  1.719  1.250
9 1502-32-32-FG 2.813 2-11-1/2 NPTF 2-11-1/2 NPSM 2.390  2.570  2.203  1.720
