P系列-5504

发布日期:2024-01-16 浏览次数:405

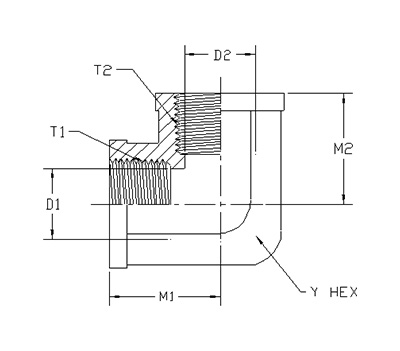

ITEM P/N Y T1 M1 D1 T2 M2 D2
1 5504-02-02-FG 0.562 1/8-27NPTF 0.66 0.315 1/8-27NPTF 0.66 0.315
2 5504-04-02-FG 0.75 1/4-18NPTF 0.88 0.39 1/8-27NPTF 0.67 0.315
3 5504-04-04-FG 0.75 1/4-18NPTF 0.88 0.39 1/4-18NPTF 0.88 0.39
4 5504-06-04-FG 0.875 3/8-18NPTF 1.02 0.531 3/8-18NPTF 1.01 0.39
5 5504-06-06-FG 0.875 3/8-18NPTF 1.02 0.531 3/8-18NPTF 1.02 0.531
6 5504-06-08-FG 1.062 3/8-18NPTF 1.01 0.531 1/2-14NPTF 1.23 0.649
7 5504-08-04-FG 1.062 1/2-14NPTF 1.23 0.649 1/4-18NPTF 1 0.39
8 5504-08-06-FG 1.062 1/2-14NPTF 1.23 0.649 3/8-18NPTF 1.01 0.531
9 5504-08-08-FG 1.062 1/2-14NPTF 1.23 0.649 1/2-14NPTF 1.23 0.649
10 5504-12-08-FG 1.312 3/4-14NPTF 1.36 0.854 1/2-14NPTF 1.35 0.649
11 5504-12-12-FG 1.312 3/4-14NPTF 1.36 0.854 3/4-14NPTF 1.36 0.854
12 5504-16-12-FG 1.625 1-11-1/2NPTF 1.62 1.080 3/4-14NPTF 1.39 0.854
13 5504-16-16-FG 1.625 1-11-1/2NPTF 1.62 1.080 1-11-1/2NPTF 1.62 1.08
14 5504-20-20-FG 1.875 1-1/4-11-1/2NPTF 1.7 1.421 1-1/4-11-1/2NPTF 1.7 1.421
15 5504-24-24-FG 2.562 1-1/2-11-1/2NPTF 2.08 1.657 1-1/2-11-1/2NPTF 2.08 1.657
