P系列-5405
发布日期：2024-01-16 浏览次数：742

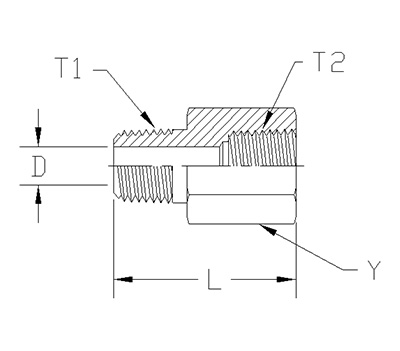

| ITEM | P/N | Y HEX | T1 | D | T2 | L |
| 1 | 5405-02-02 | 0.625 | 1/8-27 NPTF | 0.188 | 1/8-27 NPTF | 1.04 |
| 2 | 5405-02-06 | 0.875 | 1/8-27 NPTF | 0.188 | 3/8-18 NPTF | 1.26 |
| 3 | 5405-04-04 | 0.750 | 1/4-18 NPTF | 0.281 | 1/4-18 NPTF | 1.39 |
| 4 | 5405-04-06 | 0.875 | 1/4-18 NPTF | 0.281 | 3/8-18 NPTF | 1.44 |
| 5 | 5405-06-06 | 0.875 | 3/8-18 NPTF | 0.406 | 3/8-18 NPTF | 1.44 |
| 6 | 5405-06-08 | 1.125 | 3/8-18 NPTF | 0.406 | 1/2-14 NPTF | 1.68 |
| 7 | 5405-08-08 | 1.125 | 3/4-14 NPTF | 0.531 | 1/2-14 NPTF | 1.87 |
| 8 | 5405-08-12 | 1.375 | 1/2-14 NPTF | 0.531 | 3/4-14 NPTF | 1.93 |
| 9 | 5405-12-12 | 1.375 | 3/4-14 NPTF | 0.719 | 3/4-14 NPTF | 1.93 |
| 10 | 5405-16-16 | 1.625 | 1-11-1/2 NPTF | 0.938 | 1-11-1/2 NPTF | 2.37 |
| 11 | 5405-20-20 | 2.000 | 1-1/4-11-1/2 NPTF | 1.25 | 1-1/4-11-1/2 NPTF | 2.49 |
| 12 | 5405-24-24 | 2.375 | 1-1/2-11-1/2 NPTF | 1.5 | 1-1/2-11-1/2 NPTF | 2.53 |
| 13 | 5405-32-32 | 2.875 | 2-11-1/2 NPTF | 1.938 | 2-11-1/2 NPTF | 2.66 |
