P系列-1501
发布日期：2024-01-16 浏览次数：759

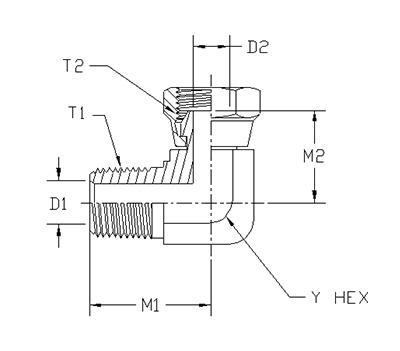

| ITEM | P/N | Y HEX | T1 | T2 | M1 | M2 | D1 | D2 |
| 1 | 1501-02-02-FG | 0.483 | 1/8-27 NPTF | 1/8-27 NPSM | 0.720 | 0.700 | 0.188 | 0.110 |
| 2 | 1501-02-04-FG | 0.562 | 1/8-27 NPTF | 1/4-18 NPSM | 0.900 | 0.880 | 0.188 | 0.210 |
| 3 | 1501-04-02-FG | 0.562 | 1/4-18 NPTF | 1/8-27 NPSM | 1.090 | 0.770 | 0.281 | 0.110 |
| 4 | 1501-04-04-FG | 0.562 | 1/4-18 NPTF | 1/4-18 NPSM | 1.090 | 0.880 | 0.281 | 0.210 |
| 5 | 1501-04-06-FG | 0.75 | 1/4-18 NPTF | 3/8-18 NPSM | 1.220 | 0.990 | 0.281 | 0.320 |
| 6 | 1501-04-08-FG | 0.875 | 1/4-18 NPTF | 1/2-14 NPSM | 1.280 | 1.110 | 0.281 | 0.440 |
| 7 | 1501-06-04-FG | 0.75 | 3/8-18 NPTF | 1/4-18 NPSM | 1.220 | 1.160 | 0.406 | 0.210 |
| 8 | 1501-06-06-FG | 0.75 | 3/8-18 NPTF | 3/8-18 NPSM | 1.220 | 0.990 | 0.406 | 0.320 |
| 9 | 1501-06-08-FG | 0.875 | 3/8-18 NPTF | 1/2-14 NPSM | 1.280 | 1.110 | 0.406 | 0.440 |
| 10 | 1501-08-04-FG | 0.875 | 1/2-14 NPTF | 1/4-18 NPSM | 1.470 | 1.020 | 0.531 | 0.210 |
| 11 | 1501-08-06-FG | 0.875 | 1/2-14 NPTF | 3/8-18 NPSM | 1.470 | 1.040 | 0.531 | 0.320 |
| 12 | 1501-08-08-FG | 0.875 | 1/2-14 NPTF | 1/2-14 NPSM | 1.470 | 1.110 | 0.531 | 0.440 |
| 13 | 1501-08-12-FG | 1.062 | 1/2-14 NPTF | 3/4-14 NPSM | 1.590 | 1.300 | 0.531 | 0.610 |
| 14 | 1501-12-06-FG | 1.062 | 3/4-14 NPTF | 3/8-18 NPSM | 1.590 | 1.260 | 0.719 | 0.320 |
| 15 | 1501-12-08-FG | 1.062 | 3/4-14 NPTF | 1/2-14 NPSM | 1.590 | 1.330 | 0.719 | 0.440 |
| 16 | 1501-12-12-FG | 1.062 | 3/4-14 NPTF | 3/4-14 NPSM | 1.590 | 1.300 | 0.719 | 0.610 |
| 17 | 1501-12-16-FG | 1.312 | 3/4-14 NPTF | 1-11-1/2 NPSM | 1.780 | 1.540 | 0.719 | 0.780 |
| 18 | 1501-16-12-FG | 1.312 | 1-11-1/2 NPTF | 3/4-14 NPSM | 1.970 | 1.400 | 0.938 | 0.610 |
| 19 | 1501-16-16-FG | 1.312 | 1-11-1/2 NPTF | 1-11-1/2 NPSM | 1.970 | 1.540 | 0.938 | 0.780 |
| 20 | 1501-16-20-FG | 1.625 | 1-11-1/2 NPTF | 1-1/4-11-1/2 NPSM | 2.350 | 1.730 | 0.938 | 1.010 |
| 21 | 1501-20-16-FG | 1.625 | 1-1/4-11-1/2 NPTF | 1-11-1/2 NPSM | 2.380 | 1.700 | 1.250 | 0.780 |
| 22 | 1501-20-20-FG | 1.625 | 1-1/4-11-1/2 NPTF | 1-1/4-11-1/2 NPSM | 2.380 | 1.730 | 1.250 | 1.010 |
| 23 | 1501-24-20-FG | 1.875 | 1-1/2-11-1/2 NPTF | 1-1/4-11-1/2 NPSM | 2.640 | 1.770 | 1.500 | 1.010 |
| 24 | 1501-24-24-FG | 1.875 | 1-1/2-11-1/2 NPTF | 1-1/2-11-1/2 NPSM | 2.640 | 1.890 | 1.500 | 1.250 |
| 25 | 1501-32-32-FG | 2.500 | 2-11-1/2 NPTF | 2-11-1/2 NPSM | 3.00 | 2.690 | 1.938 | 1.720 |
