P系列-1404

发布日期:2024-01-16 浏览次数:383

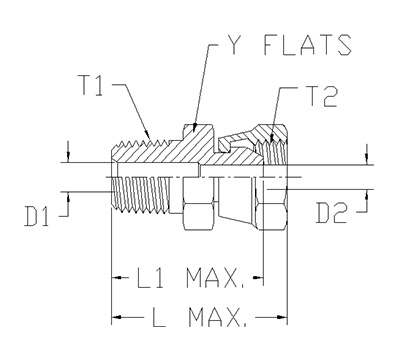

ITEM P/N Y FLATS T1 T2 L L1 D1 D2
1 1404-02-02-FG 0.563 1/8-27 NPTF 1/8-27 NPSM 1.19 1.00 0.188 0.156
3 1404-04-04-FG 0.688 1/4-18 NPTF 1/4-18 NPSM 1.62 1.39 0.281 0.219
5 1404-06-06-FG 0.875 3/8-18 NPTF 3/8-18 NPSM 1.74 1.47 0.406 0.344
6 1404-08-08-FG 1.000 1/2-14 NPTF 1/2-14 NPSM 2.07 1.76 0.531 0.469
8 1404-12-12-FG 1.250 3/4-14 NPTF 3/4-14 NPSM 2.25 1.84 0.719 0.641
10 1404-16-16-FG 1.500 1-11 1/2 NPTF 1-11 1/2 NPSM 2.49 2.08 0.938 0.844
11 1404-20-20-FG 1.875 1 1/4-11 1/2 NPTF 1 1/4-11 1/2 NPSM 2.64 2.18 1.250 1.141
12 1404-24-24-FG 2.125 1 1/2-11 1/2 NPTF 1 1/2-11 1/2 NPSM 2.81 2.31 1.500 1.359
13 1404-32-32-FG 2.625 2-11 1/2 NPTF 2-11 1/2 NPSM 2.96 2.46 1.938 1.813
