J系列-6600
发布日期：2024-01-12 浏览次数：765

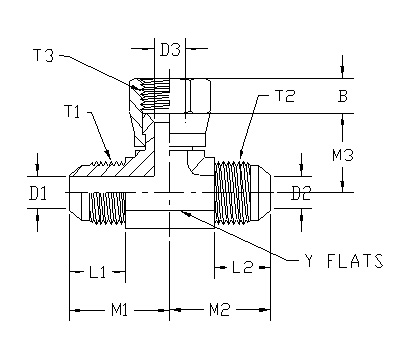

| ITEM | P/N | Y HEX | T1 | T2 | T3 | M1 | M2 | M3 | D1 | D2 | D3 |
| 1 | 6600-04-04-04-FG | 0.438 | 7/16-20UNF | 7/16-20UNF | 7/16-20UNF | 0.89 | 0.89 | 0.66 | 0.172 | 0.172 | 0.172 |
| 2 | 6600-05-05-05-FG | 0.562 | 1/2-20 UNF | 1/2-20 UNF | 1/2-20 UNF | 0.95 | 0.95 | 0.685 | 0.234 | 0.234 | 0.234 |
| 3 | 6600-06-06-06-FG | 0.562 | 9/16-18UNF | 9/16-18UNF | 9/16-18UNF | 1.06 | 1.06 | 0.875 | 0.297 | 0.297 | 0.297 |
| 4 | 6600-08-08-08-FG | 0.75 | 3/4-16UNF | 3/4-16UNF | 3/4-16UNF | 1.25 | 1.25 | 0.958 | 0.391 | 0.391 | 0.391 |
| 5 | 6600-10-10-10-FG | 0.875 | 7/8-14UN | 7/8-14UN | 7/8-14UN | 1.45 | 1.45 | 1.12 | 0.484 | 0.484 | 0.484 |
| 6 | 6600-12-12-12-FG | 1.062 | 1-1/16-12UN | 1-1/16-12UN | 1-1/16-12UN | 1.66 | 1.66 | 1.188 | 0.609 | 0.609 | 0.609 |
| 7 | 6600-16-16-16-FG | 1.312 | 1-5/16-12UN | 1-5/16-12UN | 1-5/16-12UN | 1.81 | 1.81 | 1.406 | 0.844 | 0.844 | 0.844 |
| 8 | 6600-20-20-20-FG | 1.625 | 1-5/8-12UN | 1-5/8-12UN | 1-5/8-12UN | 2.06 | 2.06 | 1.685 | 1.078 | 1.078 | 1.078 |
| 9 | 6600-32-32-32-FG | 2.5 | 2 1/2-12UN | 2 1/2-12UN | 2 1/2-12UN | 3.06 | 3.06 | 1.856 | 1.781 | 1.781 | 1.781 |
